• LT315/70R17 all-terrain BSW tires
• 17" cast aluminum wheels w/painted & machined finish
• Full-size spare tire w/lock, under frame winch-type carrier, safety catch
• Hood w/air extractors
• Front/rear microcellular jounce bumpers
• Unique front bumper w/foundry finish & body-color fascia
• Unique rear bumper w/painted foundry finish
• Cast aluminum running boards
• Unique front/rear wheel lip moldings w/foundry finish
• Black front/rear stone cuffs
• Outer scuff pad
• Brick wall front grille
• Blacked out headlamps & tail lamps
• Autolamp -inc: automatic on/off headlamps
• Cargo lamp integrated w/high mount stop light
• Integrated marker lights
• Black pwr side mirrors
• Pwr sliding rear window
• Rear privacy tint glass
• Variable speed intermittent wipers
• Flared front fenders w/air extractors
• Unique tailgate badge
• (4) full-size doors
• Removable tailgate w/key lock & lift assist

• AM/FM stereo w/CD/MP3 player -inc: clock, speed compensated volume control, aux audio input jack
• SIRIUS satellite radio -inc: roof-mounted antenna, (6) month subscription *N/A in Alaska or Hawaii*
• SYNC voice activated communications & entertainment system -inc: Bluetooth® capability, steering wheel audio controls, USB port, audio input jack, 911 assist, vehicle health report, turn-by-turn navigation, real-time traffic

• Unique leather/cloth bucket seats w/6-way pwr driver seat, console, seat back bolsters
• Unique vinyl 60/40 flip-up rear split bench seat
• Unique rubber front/rear floor mats w/SVT logo
• Driver & front passenger door scuff plates
• Unique leather-wrapped steering wheel w/thumb pads, audio controls & memory
• Tilt steering column
• 4.2" LCD screen in cluster
• Customer info display
• Outside temp gauge
• Pwr windows w/driver side 1-touch down
• Delayed accessory pwr
• Pwr door locks w/autolock feature
• Driver side SecuriCode keypad entry
• Perimeter alarm
• Remote keyless entry w/integrated key transmitter, illuminated entry & panic button
• Cruise control
• SecuriLock anti-theft ignition (PATS)
• Manual air conditioning
• Chrome ring w/obsidian vanes air conditioning registers
• Rear window defroster
• Rear door cupholders
• Instrument panel mounted cigar lighter
• Front pwr point
• Rear pwr point
• Console top switches -inc: hill decent, easy off road mode, aux switch pack
• Unique IP center stack & door trim applique finish
• Auto-dimming rearview mirror w/compass
• Front passenger side A-pillar grab handle

• Anti-lock braking system (ABS)
• AdvanceTrac w/roll stability control (RSC)
• Dual stage driver & passenger front airbags w/passenger off switch
• Dual stage driver & front passenger seat-mounted side airbags
• Safety Canopy front/rear outboard side curtain airbags
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute
• SOS post crash alert system
• Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors
• Center front 2-point safety belt
• 3-point safety belts at all rear seat positions
• Auto lock safety belt feature for child seats
• Rear door child safety locks
• Tire pressure monitoring system
• Dual note horn

6.2L EFI V8 ENGINE

• (STD)

• Order Code 517A
• Electronic Locking w/4.10 Axle Ratio
• GVWR: 7,300 lbs Payload Package
• 17" Cast Aluminum Wheels
• Unique Leather/Cloth Front Seat
• Stowable Bed Extender
• Tailgate Step
• Exterior Graphics Package
• Hood Graphics Package
• Power Moonroof
• AM/FM Single CD w/Clock
• Navigation w/Sony Audio
• Radio: Sony Audio w/Multi CD
• Front License Plate Bracket
• Raptor Plus Package
• Raptor Luxury Package
• Overhead Console w/Single Storage Bin
• 10-Way Power Adjustable Driver & Passenger Seat
• Dual Electronic Automatic Temperature Control
• Heated Front Seats
• Driver Memory
• Heated PowerFold Sideview Mirrors
• Power Adjustable Pedals w/Memory
• Remote Start
• SYNC
• Trailer Brake Controller
• 6-Way Power Adjustable Driver's Seat
• Rear-View Camera
• SIRIUS Satellite Radio
• 4 Speakers
• AM/FM radio: SIRIUS
• Compass
• Auto-dimming Rear-View mirror
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Telescoping steering wheel
• Steering wheel mounted audio controls
• Split folding rear seat
• Speed-sensing steering
• Speed control
• Remote keyless entry
• Rear window defroster
• Rear step bumper
• Rear reading lights
• Radio data system
• Power windows
• Power steering
• Power driver seat
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Low tire pressure warning
• Leather steering wheel
• Illuminated entry
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front fog lights
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• CD player
• Alloy wheels
• ABS brakes
• Tachometer
• Front Center Armrest
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning
• 4-Wheel Disc Brakes

• Mileage
• Fuel Economy Est-Combined (MPG): 12
• EPA Fuel Economy Est - City (MPG): 11
• EPA Fuel Economy Est - Hwy (MPG): 14
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 19.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4000
• Gross Axle Wt Rating - Rear (lbs): 3700
• Curb Weight - Front (lbs): 3541
• Curb Weight - Rear (lbs): 2659
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 14700
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1200
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2000
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Leaf Spring
• Spring Capacity - Front (lbs): 4000
• Spring Capacity - Rear (lbs): 3700
• Axle Type - Front: Double Wishbone
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4000
• Axle Capacity - Rear (lbs): 3500
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 47.0
• Shock Absorber Diameter - Rear (mm): 47.0
• Stabilizer Bar Diameter - Front (in): 1.08
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.7 x 9.1
• Rear Brake Rotor Diam x Thickness (in): 13.7 x 9.0
• Tires
• Front Tire Size: LT315/70R17
• Rear Tire Size: LT315/70R17
• Spare Tire Size: LT315/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8.5
• Rear Wheel Size (in): 17 x 8.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.0
• Steering Ratio (:1), At Lock: 20.0
• Turning Diameter - Curb to Curb (ft): 47.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Fully-boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 144.5
• Length, Overall w/o rear bumper (in): 232.1
• Width, Max w/o mirrors (in): 86.3
• Height, Overall (in): 78.5
• Overhang, Front (in): 38.0
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 164.9
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 36.2
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 67.0
• Cargo Box Width @ Top, Rear (in): 60.3
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 55.4
• Ext'd Cab Cargo Volume (ft³): 62.3
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 65.9
• Front Hip Room (in): 60.5
• Second Head Room (in): 40.3
• Second Leg Room (in): 43.5
• Second Shoulder Room (in): 65.5
• Second Hip Room (in): 64.6
• Summary

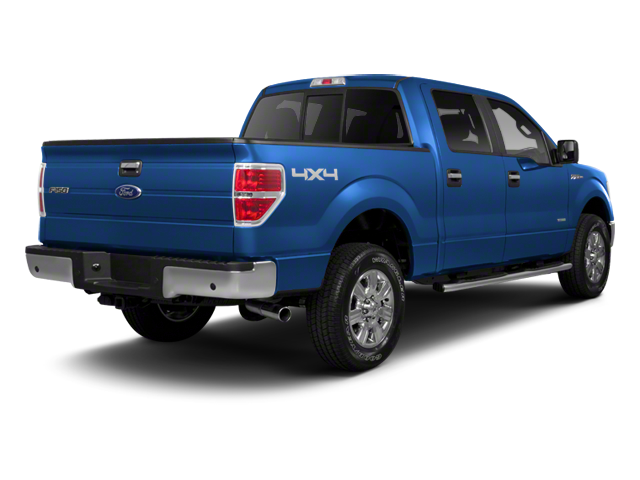

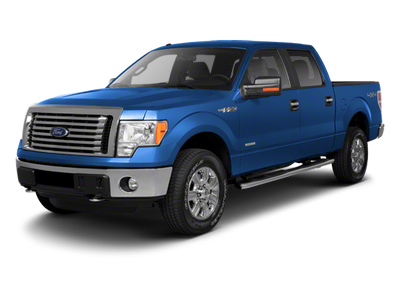

• Vehicle Name: Ford F-150
• Body Style: Crew Cab Pickup
• Body Code: 145" WB
• Emissions
• EPA Greenhouse Gas Score: 1
• Tons/yr of CO2 Emissions @ 15K mi/year: 15.5
